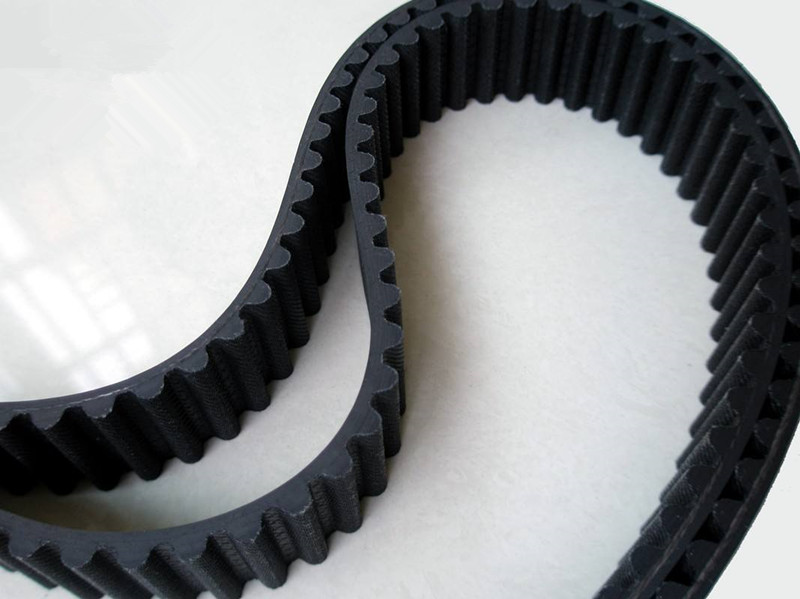

Single tooth synchronous belt is a common synchronous belt, which can meet the production and processing needs of most enterprises. If it is not used properly, it will also fail. What is the reason? Let's make it up for you to popularize science.

Failure form of single tooth synchronous belt:

1. The belt body of single tooth synchronous belt breaks due to fatigue.

2. The belt teeth of the synchronous belt are sheared and crushed.

3. The belt teeth and belt side of single tooth synchronous belt are worn and peeled.

4. If the bearing surface of the synchronous belt is extended and the pitch becomes larger, the belt teeth of the synchronous belt will climb.

5. Due to excessive impact and overload, the belt body of single-sided tooth synchronous belt is broken.

6. The back of the belt body of the single tooth synchronous belt is cracked or the belt body becomes soft.

7. The belt body of single-sided tooth synchronous belt makes more noise during operation.

Treatment method for failure of single tooth synchronous belt:

1. The model of single-sided tooth synchronous belt shall be checked before installation, and it shall be replaced in time if necessary.

2. If the synchronous belt cannot be twisted, when installing a wider synchronous belt or a larger synchronous belt pulley, it is necessary to appropriately increase the diameter of the synchronous belt pulley or widen the synchronous belt, and remove sundries and tighten it during installation.

3. If the single tooth synchronous belt deviates, the bearing shall be adjusted and aligned immediately, and then the flange of the synchronous belt pulley shall be replaced. The bearing or chassis shall also be reinforced.

4. In case of longitudinal cracking of the synchronous belt, the flange of the synchronous belt pulley shall be replaced immediately, and then the bearing of the synchronous belt pulley shall be realigned, and the tension shall be increased appropriately. In addition, foreign matters shall be removed, the protective cover shall be installed correctly, and the cutting device and the guide device of the synchronous belt pulley shall be checked.
