Industry knowledge

Skirt conveyor belt is divided into two types: conveyor belt with skirt without diaphragm and conveyor belt with skirt with diaphragm. It can make all kinds of bulk materials continuously transported at any inclination angle of 0-90 degrees. It has the advantages of large transportation inclination angle, wide application range and small floor area. It has the characteristics of no transfer point, reduced civil engineering investment, low maintenance cost and large conveying capacity, which solves the conveying angle that can not be reached by ordinary conveyor belt or patterned conveyor belt. The corrugated edge conveyor belt can be designed into a complete conveying system according to the requirements, avoiding the intermittent conveying and complex conveying lifting system.

Corrugated skirt baffle conveyor belt

The corrugated edge conveyor belt can transport all kinds of bulk materials from coal, ore, sand to chemical fertilizer and grain along the horizontal, inclined, vertical and variable angle directions.

The particle size of materials is unlimited, ranging from very small particle size to 400mm large particle size, and the conveying capacity can range from 1m3 / h to 6000 m3 / h.

The skirt and diaphragm are bonded to the baseband by secondary low-temperature vulcanization.

The baseband is composed of upper covering glue, lower covering glue, tape core and transverse rigid layer. The thickness of upper covering glue is generally 3-6mm; The thickness of the lower covering glue is generally 1.5-4.5mm. The core material bears tensile force, and its material can be cotton canvas (CC), nylon canvas (NN), polyester canvas (EP) or steel wire rope (st). In order to increase the lateral rigidity of the baseband, a special reinforcing layer is added to the core, which is called the lateral rigidity layer. The width specification of baseband is the same as that of ordinary tape and complies with the standard provisions of GB / t7984-2001.

With the development of domestic industry, light skirt conveyor belt has been gradually applied in food, tobacco, medicine, agriculture, electronics and other industries. The light skirt belt is made of thermoplastic elastomers such as PVC and PU by high cycle welding, with flexible processing and light application.

product mix

The skirt lifting conveyor belt (corrugated edge retaining conveyor belt) is mainly composed of the following three parts: 1. High strength and wear-resistant baseband, with greater transverse stiffness and longitudinal flexibility. 2。 High strength heat vulcanized rubber corrugated edge. 3。 A transverse partition that prevents objects from sliding. The bottom and baseband of the retaining edge and diaphragm are thermally vulcanized into one. The height of the retaining edge and diaphragm can reach 40-630mm. Canvas is pasted in the retaining edge to strengthen the tear resistance of the retaining edge

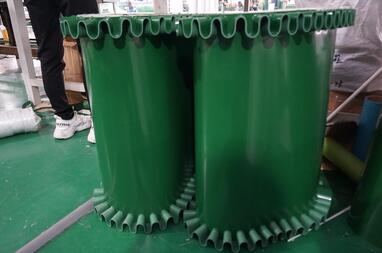

Pu curved edge baffle conveyor belt

Maintenance and instructions

1. During transportation and storage, the conveyor belt shall be kept clean, free from sunlight or rain and snow, prevent contact with acids, alkali oils, organic solvents and other substances, and be one meter away from the heating device. 2. During storage, the temperature in the warehouse should be kept between - 18 ℃ - 40 ℃, and the relative temperature should be kept between 50-80% RH. 3. During storage, the product shall be placed in rolls and shall not be folded. During storage, it shall be turned once a quarter. 4. Conveyor belts of different types, specifications and layers should not be connected together, and their joints should preferably be bonded. 5. The type, structure, specification and number of layers of conveyor belt shall be reasonably selected according to the service conditions. 6. Generally, the running speed of the conveyor belt should not be higher than 2.5m/s. Low speed should be used as far as possible for materials with large block and high wear and the use of fixed plow unloading device. 7. The diameter of the transmission drum of the conveyor shall be reasonably selected according to the design regulations of the conveyor, the relationship between the cloth layer of the conveyor belt, the matching of the recitation drum and the redirection drum, as well as the requirements for the groove angle of the idler.

With the popularity of conveyor belts in industrial production, manufacturers pay attention to multiple varieties, high performance, lightweight, multi-function and long life. In industrial production, it is particularly important to use the conveyor belt correctly. During the use of the conveyor belt, the following matters should be paid attention to: 1. Prevent the idler from being covered by materials, resulting in poor rotation, prevent material leakage from being stuck between the drum and the belt, and pay attention to the lubrication of the moving part of the conveyor belt, but do not oil the conveyor belt; 2. Prevent the conveyor belt from starting under load; 3. If the conveyor belt deviates, timely take measures to correct it; 4. In case of local damage of conveyor belt, artificial cotton shall be used for timely repair to avoid expansion; 5. Prevent the conveyor belt from being blocked by frame, pillar or block materials to prevent breakage and tearing

The above is the introduction of the characteristics of skirt baffle conveyor belt and corrugated baffle conveyor belt (corrugated baffle conveyor belt). I hope it will be helpful to you. Miou belt focuses on the production, processing and sales of industrial conveyor belts. It has always provided customers with high-quality conveyor belts. It can be customized according to the material, width, height and perimeter required by customers. New and old customers are welcome to customize. For details, please consult 400-860-6021.
