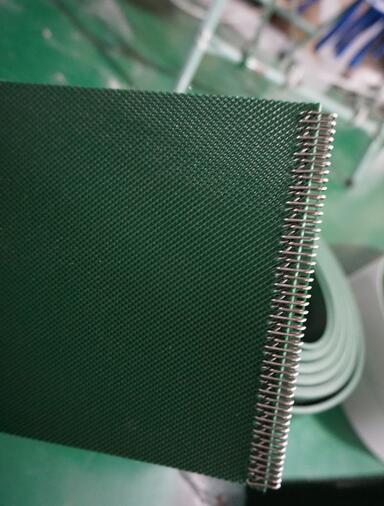

All conveyor belts must be connected into a ring before they can be used. Some connection methods choose steel buckle joints. What are its characteristics? Let's give you a detailed introduction.

1. Improve the stress of the string pin: due to the wide buckle ring structure at the tail of the buckle body, the extrusion pressure of the string pin can be reduced and the service life of the string pin can be improved.

2. Applicable to a wide range of belt thickness: because the nail angle can hook back to the conveyor belt after the buckle is fixed. A kind of belt buckle with thickness specification can meet the binding link of conveyor belt after 6-15mm, so as to facilitate customers' better use and management.

3. Small impact during operation.

4. High joint strength: due to the V-shaped arrangement of the steel buckle, the relative density of the buckle on the binding section of the conveyor belt is less, less damage to the belt core, and the stress distribution of the buckle is uniform during the operation of the conveyor belt, so the joint strength of the conveyor belt is high and the service life is long.

5. Good straightness of the joint: bind the conveyor belt with a hammer nailing machine, and nail the conveyor belt in cross order after positioning, so that the extrusion deformation of the conveyor belt at the nailing part is evenly distributed. The straightness of the connecting buckle itself is good, so that the straightness of the conveyor belt joint is good. During connection, it is easy to transfer the serial pin, and the problem of deviation of the conveyor belt can be reduced during operation.

The above is the introduction of the characteristics of steel buckle conveyor belt. I hope it will be helpful to you. Miou belt focuses on the production, processing and sales of industrial conveyor belts. It has always provided customers with high-quality conveyor belts. It can be customized according to the material, width, height and perimeter required by customers. New and old customers are welcome to customize.
