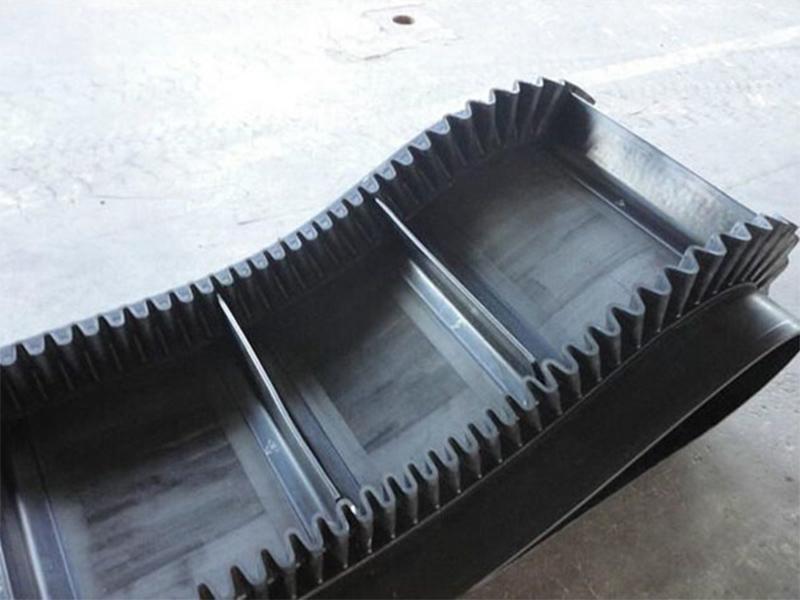

In the process of conveying products with conveyor belt, in order to separate the articles or prevent the articles from rolling and falling, we will add baffles to the surface of conveyor belt to create baffled conveyor belt. The baffles can be of various types, and T-type and V-type are more common. Although the baffle conveyor belt can solve the problem that ordinary conveyor belt can not solve, it can also climb the slope, but there will be problems. Such as deviation and injury. What are the reasons for these problems? How to solve it?

How to solve the deviation of baffle conveyor belt

1. If the tail of the belt deviates to the left, adjust the tail roller, adjust the left tension lead screw, or tighten or loosen, depending on the site situation. Similarly, if the belt deviates to the right, the adjustment method is similar;

2. The upper part of the belt deviates from the left and right, and the adjustment method is the same;

3. Adjust the head roller in the same direction as the deviation;

4. If the middle part of the belt conveyor deviates, adjust the middle of the belt conveyor with large inclination angle, and adjust the upper roller or lower roller for correction, then the adjustment method is different.

Several reasons for the damage of baffle conveyor belt

1. Due to insufficient baffle length, the baffle length should be adjusted and extended until the material on the conveyor belt is stable;

2. Improper opening of skirt;

3. The distance between conveyor belt and baffle is not suitable;

4. Improper feeding direction;

5. The material of baffle is not suitable;

6. Improper blanking angle and drop of materials;

7. Improper blanking speed of materials;

8. The lower idler is stuck, does not rotate or is not adjusted properly, and the upper cover rubber is worn abnormally.

The above is the introduction of the problems of baffle conveyor belt, hoping to help you. Welcome new and old customers to inquire.
